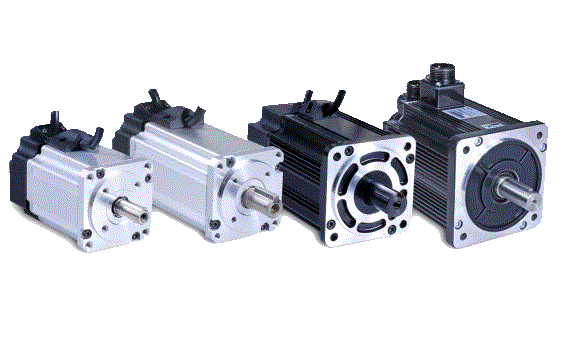

Standard AC Servo Motors

Highlights

Reliable industrial quality
High torque density
Rated power from 100 W to 2KW
Frame size options of 40mm, 60 mm, 80 mm and 130 mm
encoder options of 2,500-line, 5,000-line, 17-bit, and 23-bit

Introduction

Leadshine ELM series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning. They are available in frame sizes from 40 mm, 60mm, 80mm, 110mm and 130mm. Encoder options are available 2,500-line, 17-bit, and 23-bit

Available Series

ELM Series (NEW)

The ELM series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning. They are available in metric frame sizes from 40 mm to 130 mm. A wide variety of options are available for customization to meet your application needs. Standard modes have standard cabling options for direct connection to the EL5 drives.

Detail...

EL5-M Series

The EL5-M series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning. They are available in metric frame sizes from 40 mm to 130 mm. A wide variety of options are available for customization to meet your application needs. Standard modes have standard cabling options for direct connection to the EL5-D drives.

Detail...

Available Products

Filter By Frame size :

Model	Series	Encoder Resolution	Frame Size	Rated Power (W)	Rated Voltage (VAC)	Torque (N*m)		Speed (RPM)		Motor Length (mm)	Notes
Model	Series	Encoder Resolution	Frame Size	Rated Power (W)	Rated Voltage (VAC)	Rated	Peak	Rated	Peak	Motor Length (mm)	Notes
ELM0100LL40F-SS	ELM	23-Bit	40mm	100	220	0.32	0.96	3000	6500	80.7	plastic connector, IP65
ELM0100LL40E-SS	ELM	23-Bit	40mm	100	220	0.32	0.96	3000	6500	114.7	plastic connector; brake, IP65
ELM0100LL40F-HH	ELM	23-Bit	40mm	100	220	0.32	0.96	3000	6500	80.7	aviation connector, IP65
ELM0100LL40E-HH	ELM	23-Bit	40mm	100	220	0.32	0.96	3000	6500	114.7	aviation connector; brake, IP65
ELM0200LH60F-SS	ELM	23-Bit	60mm	200	220	0.64	1.92	3000	6000	73.1	plastic connector, IP65
ELM0200LH60E-SS	ELM	23-Bit	60mm	200	220	0.64	1.92	3000	6500	103.6	plastic connector; brake, IP65
ELM0200LH60F-HH	ELM	23-Bit	60mm	200	220	0.64	1.92	3000	6500	73	aviation connector, IP65
ELM0200LH60E-HH	ELM	23-Bit	60mm	200	220	0.64	1.92	3000	6500	103.6	aviation connector; brake, IP65
ELM0400LH60F-SS	ELM	23-Bit	60mm	400	220	1.27	3.81	3000	6000	89.5	plastic connector, IP65
ELM0400LH60E-SS	ELM	23-Bit	60mm	400	220	1.27	3.81	3000	6500	120.2	plastic connector; brake, IP65
ELM0400LH60F-HH	ELM	23-Bit	60mm	400	220	1.27	3.81	3000	6500	89	aviation connector, IP65
ELM0400LH60E-HH	ELM	23-Bit	60mm	400	220	1.27	3.81	3000	6500	120.2	aviation connector; brake, IP65
ELM0750LH80F-SS	ELM	23-Bit	80mm	750	220	2.4	7.2	3000	6500	95	plastic connector
ELM0750LH80E-SS	ELM	23-Bit	80mm	750	220	2.4	7.2	3000	6500	130.7	plastic connector; brake, IP65
ELM0750LH80F-HH	ELM	23-Bit	80mm	750	220	2.4	7.2	3000	6500	95	aviation connector, IP65
ELM0750LH80E-HH	ELM	23-Bit	80mm	750	220	2.4	7.2	3000	6500	130.7	aviation connector; brake, IP65
ELM0850LH130E-HD	ELM	23-Bit	130mm	850	220	5.4	16.3	1500	3000	172	plastic connector, brake, IP65
ELM0850LH130F-HD	ELM	23-Bit	130mm	850	220	5.4	16.3	1500	3000	145	plastic connector, IP65
ELM1300LH130E-HD	ELM	23-Bit	130mm	1300	220	8.4	25.2	1500	3000	192	plastic connector, brake, IP65
ELM1300LH130F-HD	ELM	23-Bit	130mm	1300	220	8.4	25.2	1500	3000	165	plastic connector, IP65
ELM1800LH130E-HD	ELM	23-Bit	130mm	1800	220	5.4	16.3	1500	3000	172	plastic connector, brake, IP65
ELM1800LH130F-HD	ELM	23-Bit	130mm	1800	220	11.5	34.5	1500	2000	192	plastic connector, IP65
ELM0200SH60E-SS	ELM	23-Bit	60mm	200	220	0.64	2.23	3000	6500	108.6	plastic connector, brake, IP65
ELM0200SH60F-SS	ELM	23-Bit	60mm	200	220	0.64	2.23	3000	6500	78.1	plastic connector, IP65
ELM0400SH60E-SS	ELM	23-Bit	60mm	400	220	1.27	4.46	3000	6500	125.5	plastic connector, brake, IP65
ELM0400SH60F-SS	ELM	23-Bit	60mm	400	220	1.27	4.46	3000	6500	95.2	plastic connector, IP65
ELM0750SH80E-SS	ELM	23-Bit	80mm	750	220	2.39	8.36	3000	6500	171.2	plastic connector, brake, IP65
ELM0750SH80F-SS	ELM	23-Bit	80mm	750	220	2.39	8.36	3000	6500	136.2	plastic connector, IP65
ELM0100FL40G-HH	ELM	17-Bit	40mm	100	220	0.32	0.96	3000	6000	109	aviation connector, brake, IP54
ELM0100FL40G-SS	ELM	17-Bit	40mm	100	220	0.32	0.96	3000	6000	109	plastic connector, brake, IP54
ELM0100FL40H-HH	ELM	17-Bit	40mm	100	220	0.32	0.96	3000	6000	79	aviation connector, IP54
ELM0100FL40H-SS	ELM	17-Bit	40mm	100	220	0.32	0.96	3000	6000	79	plastic connector, IP54
ELM0200FL60G-HH	ELM	17-Bit	60mm	200	220	0.64	1.92	3000	5000	118.5	aviation connector, brake, IP54
ELM0200FL60G-SS	ELM	17-Bit	60mm	200	220	0.64	1.92	3000	5000	118.5	plastic connector, brake, IP54
ELM0200FL60H-HH	ELM	17-Bit	60mm	200	220	0.64	1.92	3000	5000	86	aviation connector, IP54
ELM0200FL60H-SS	ELM	17-Bit	60mm	200	220	0.64	1.92	3000	5000	86	plastic connector, IP54
ELM0400FL60G-HH	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	159	aviation connector, brake, IP54
ELM0400FL60G-SS	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	159	plastic connector, brake, IP54
ELM0400FL60H-HH	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	127	aviation connector, IP54
ELM0400FL60H-SS	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	127	plastic connector, IP54
ELM0400FM60G-HH	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	166	aviation connector, brake, IP54
ELM0400FM60G-SS	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	166	plastic connector, brake, IP54
ELM0400FM60H-HH	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	134	aviation connector, IP54
ELM0400FM60H-SS	ELM	17-Bit	60mm	400	220	1.27	3.81	3000	5000	134	plastic connector, IP54
ELM0750FM80G-HH	ELM	17-Bit	80mm	750	220	2.4	7.2	3000	4500	175	aviation connector, brake, IP54
ELM0750FM80G-SS	ELM	17-Bit	80mm	750	220	2.4	7.2	3000	4500	175	plastic connector, brake, IP54
ELM0750FM80H-HH	ELM	17-Bit	80mm	750	220	2.4	7.2	3000	4500	142	aviation connector, IP54
ELM0750FM80H-SS	ELM	17-Bit	80mm	750	220	2.4	7.2	3000	4500	142	plastic connector, IP54
ELM1000FM80G-HH	ELM	17-Bit	80mm	1000	220	3.2	9.6	3000	4500	172.5	aviation connector, brake, IP54
ELM1000FM80G-SS	ELM	17-Bit	80mm	1000	220	3.2	9.6	3000	4500	172.5	plastic connector, brake, IP54
ELM1000FM80H-HH	ELM	17-Bit	80mm	1000	220	3.2	9.6	3000	4500	139	aviation connector, IP54
ELM1000FM80H-SS	ELM	17-Bit	80mm	1000	220	3.2	9.6	3000	4500	139	plastic connector, IP54
ELM1200EM110F-H	ELM	17 Bit	110mm	1200	220	4	12	3000	4500	189
ELM1200EM110E-H	ELM	17 Bit	110mm	1200	220	4	12	3000	4500	263
ELM1500EM110F-H	ELM	17 Bit	110mm	1500	220	5	15	3000	4500	204
ELM1500EM110E-H	ELM	17 Bit	110mm	1500	220	5	15	3000	4500	278
ELM1800EM110F-H	ELM	17 Bit	110mm	1800	220	6	18	3000	4500	219
ELM1800EM110E-H	ELM	17 Bit	110mm	1800	220	6	18	3000	4500	278
ELM1000EM130F-H	ELM	17 Bit	130mm	1000	220	3.2	9.6	2500	3000	166
ELM1000EM130E-H	ELM	17 Bit	130mm	1000	220	3.2	9.6	2500	3000	223
ELM1500EM130F-H	ELM	17 Bit	130mm	1500	220	6	18	2500	3000	179
ELM1500EM130E-H	ELM	17 Bit	130mm	1500	220	6	18	2500	3000	236
ELM2000EM130F-H	ELM	17 Bit	130mm	2000	220	7.7	22	2500	3000	241
ELM2000EM130E-H	ELM	17 Bit	130mm	2000	220	7.7	22	2500	3000	249
ELM2500EM130F-H	ELM	17 Bit	130mm	2500	220	10	25	2500	3000	209
ELM2500EM130E-H	ELM	17 Bit	130mm	2500	220	10	25	2500	3000	290
ELM3000EM130F-H	ELM	17 Bit	130mm	3000	380	15	30	2500	3000	231
ELM3000EM130E-H	ELM	17 Bit	130mm	3000	380	15	30	2500	3000	312
ELM0100BL40H-HS	ELM	2500 line	40mm	100	220	0.32	0.96	3000	4500	102
ELM0100BL40G-HS	ELM	2500 line	40mm	100	220	0.32	0.96	3000	4500	135
ELM0200BL60H-HS	ELM	2500 line	60mm	200	220	0.64	1.92	3000	5000	96
ELM0200BL60G-HS	ELM	2500 line	60mm	200	220	0.64	1.92	3000	5000	137
ELM0400BL60H-HS	ELM	2500 line	60mm	400	220	1.27	3.81	3000	5000	125
ELM0400BL60G-HS	ELM	2500 line	60mm	400	220	1.27	3.81	3000	5000	163
ELM0400BM60H-HS	ELM	2500 line	60mm	400	220	1.27	3.81	3000	5000	134
ELM0400BM60G-HS	ELM	2500 line	60mm	400	220	1.27	3.81	3000	5000	172
ELM0600BL60H-HS	ELM	2500 line	60mm	600	220	1.91	5.73	3000	5000	142
ELM0750BM80H-HS	ELM	2500 line	80mm	750	220	2.4	7.2	3000	5000	142
ELM0750BM80G-HS	ELM	2500 line	80mm	750	220	2.4	7.2	3000	5000	178
ELM1000BM80G-HS	ELM	2500 line	80mm	1000	220	3.2	9.6	3000	4500	202
ELM1200BM110F-H	ELM	2500 line	110mm	1200	220	4	12	3000	4500	189
ELM1500BM110F-H	ELM	2500 line	110mm	1500	220	5	15	3000	4500	204
ELM1500BM110E-H	ELM	2500 line	110mm	1500	220	5	15	3000	4500	278
ELM1800BM110F-H	ELM	2500 line	110mm	1800	220	6	18	3000	4500	219
ELM1000BM130F-H	ELM	2500 line	130mm	1000	220	4	12	2500	3000	166
ELM1000BM130G-H	ELM	2500 line	130mm	1000	220	4	12	2500	3000	223
ELM1500BM130F-H	ELM	2500 line	130mm	1500	220	6	18	2500	3000	179
ELM1500BM130G-H	ELM	2500 line	130mm	1500	220	6	18	2500	3000	236
ELM2000BM130F-H	ELM	2500 line	130mm	2000	220	7.7	22	2500	3000	179
ELM2000BM130E-H	ELM	2500 line	130mm	2000	220	7.7	22	2500	3000	249
ELM2500BM130F-H	ELM	2500 line	130mm	2500	380	10	25	2500	3000	209
ELM2500BM130E-H	ELM	2500 line	130mm	2500	380	10	25	2500	3000	290
ELM3000BM130F-H	ELM	2500 line	130mm	3000	380	15	30	2500	3000	231
ELM3000BM130E-H	ELM	2500 line	130mm	3000	380	15	30	2500	3000	312

Display Legacy Models
