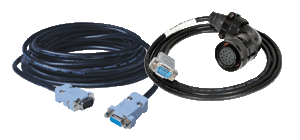

Encoder Signal Cables

Highlights

Reliable quality
Various lengths
Easy to connect
Shielded for electrical interference.

Introduction

Leadshine offers various industrial quality encoder cables for brushless servo motors, easy servo motors or stepper motors with encoders. These extension cables can meet different length requirements of feedback connections between the motors and drives.

Available Products

Part Number	Length (meter)	Description
CABLE-7BM5M0-Z	5	Encoder cable for servo motors with 17bit/23bit incremental encoder and plastic connector
CABLE-7BMA5M0-Z	5	Encoder cable for servo motors with 23bit absolute encoder and plastic connector
CABLE-7BM5M0-HH	5	Encoder cable for servo motors with 17bit/23bit encoder and aviation connector
CABLE-7BM5M0-HZ	5	Encoder cable for servo motors of 130mm frame size with 23bit encoder and aviation connector
CABLE-7BM5M0-HD	5	Encoder cable for servo motors of 130mm frame size with 23bit encoder and special type connector
CABLEG-BM1M5	1.5	1.5-meter (4.9-foot) encoder signal extension cable for the 2-Phase Closed Loop and Easy Servo Motors.
CABLEG-BM3M0	3	3-meter (9.8-foot) encoder signal extension cable for the ES-M3 and ES-MH series motors.
CABLEG-BM5M0	5	5-meter (16.4-foot) encoder signal extension cable for the ES-M3 and ES-MH series motors.
CABLEG-BM10M0	10	10-meter (32.8-foot) encoder signal extension cable for the ES-M3 and ES-MH series motors.
CABLEH-BM1M5	1.5	1.5-meter (4.9-foot) encoder signal extension cable for the 3-Phase Closed Loop and Easy Servo Motors.
CABLEH-BM1M5	1.5	1.5-meter (4.9-foot) encoder signal extension cable for the 3-Phase Closed Loop and Easy Servo Motors.
CABLEH-BM3M0	3	3-meter (9.8-foot) encoder signal extension cable for the ES-M2 series easy servo motors.
CABLEH-BM5M5	5.5	5.5-meter (18-foot) encoder signal extension cable for the ES-M2 series easy servo motors.
CABLEH-BM10M0	10	10-meter (32.8-foot) encoder signal extension cable for the ES-M2 series easy servo motors.
CABLE-ENCODER-03	3	3-meter (9.8-foot) encoder signal extension cable for the ACM series servo motors.
CABLE-ENCODER-05	5	5-meter (16.4-foot) encoder signal extension cable for the ACM series servo motors.
CABLE-ENCODER-10	10	10-meter (32.8-foot) encoder signal extension cable for the ACM series servo motors.
CABLE-LD2-BM5M0	5	Encoder cable for ELDM servo motor with 1000lines/2500lines encoder and plastic connector(ELD2 series only)
