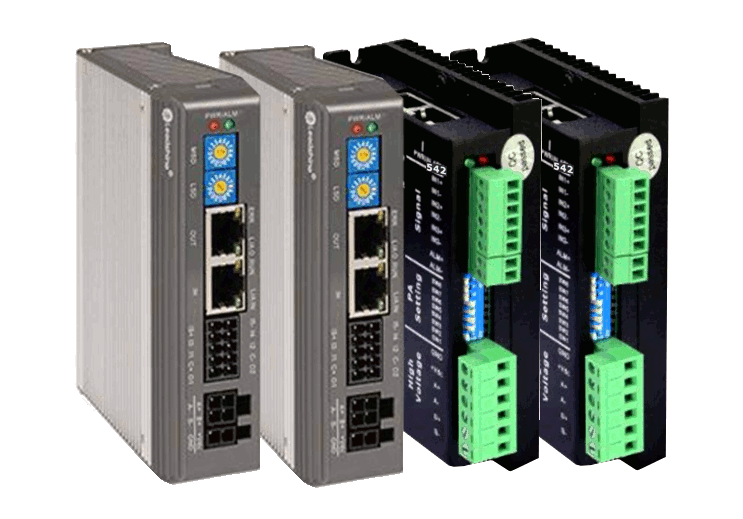

Network Stepper Drives

(EtherCAT)

Highlights

Industrial quality
CANopen, EtherCAT, and Modbus control
Excellent performance
Cable to control NEMA 8 - 42 stepper motors
High reliability
Low cost

IntroductionLiterature / Downloads

Leadshine offers network stepper drive in control types CANopen, EtherCAT, and Modbus. Those stepper drives are able to power 2 phase stepper motors of frame sizes NEMA 8, 11, 14, 16, 17, 23, 24, 34, and 42. Optimized control algorithm for excellent performance and high reliability.

Those Leadshine network stepper drives have been implemented in many applications such as electronics, medical, packing, and robotics.

Available Series

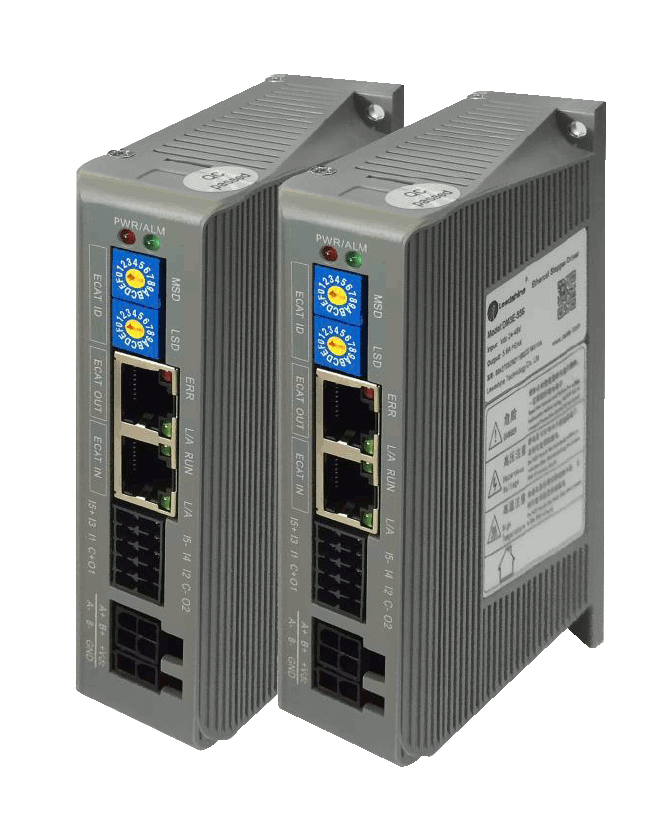

EM3E Series

Leadshine stepper drives with EtherCAT bus supporting CoE and CiA 402 protocols. Maximum 80 VDC input and 7.0A output current to control NEMA 8 - 34 stepper motors

Detail...

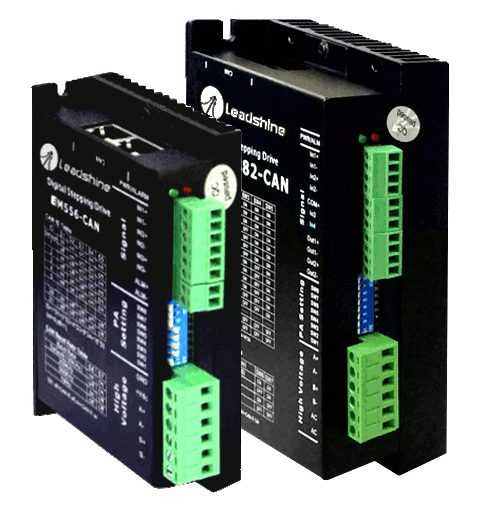

EM-CAN Series

Leadshine stepper drives with CANopen control supporting CiA 301/402 protocols. Maximum 80 VDC input voltage and 8.2A output current to power Nema 8-42 stepper motors.

Detail...

EM2RS Series (NEW)

Leadshine EM2RS Series stepper drives with RS485 Modbus and 16-segment position table (PR Mode). Maximum 80 VAC or 110VDC input and 8.2A output current to control NEMA 8 - 42 stepper motors.

Detail...

Available Products

Model	Series	Control Type(s)	Supported Protocols	Supported Operation Modes	Phase	Supply Voltage	Output Current (A)	# of Digitial Inputs	# of Digital Outputs	Suitable Stepper Motors
EM3E-522	EM3E	EtherCAT	CoE, CiA 402	CSP, PP, PV, HM	2	20-50 VDC	0.5 - 2.2	5	2	NEMA 8, 11, 14, 17
EM3E-556	EM3E	EtherCAT	CoE, CiA 402	CSP, PP, PV, HM	2	20-50 VDC	2.1 - 5.6	5	2	NEMA 17, 23, 24
EM3E-870	EM3E	EtherCAT	CoE, CiA 402	CSP, PP, PV, HM	2	20-80 VDC	2.1 - 7.0	5	2	NEMA 23, 24, 34
EM3E-A882	EM3E	EtherCAT	CoE, CiA 402	CSP, PP, PV, HM	2	20-80 VAC or 30-100 VDC	2.1 - 8.2	7	7	NEMA 23, 24, 34, 42
EM2RS-522	EM2RS	RS485 Modbus	Modbus	PP, PV, HM	2	20-50 VDC	0.5 - 2.2	7	3	NEMA 8, 11, 14, 17
EM2RS-556	EM2RS	RS485 Modbus	Modbus	PP, PV, HM	2	20-50 VDC	0.5 - 5.6	7	3	NEMA 17, 23, 24
EM2RS-870	EM2RS	RS485 Modbus	Modbus	PP, PV, HM	2	20-72 VDC	0.5 - 7.0	7	3	NEMA 24, 34
EM522-CAN	EM-CAN	CANopen	CiA 301/402	PP,PV, HM	2	20-50 VDC	0.1 - 2.2	3	1	NEMA 8,11,14,17
EM556-CAN	EM-CAN	CANopen	CiA 301/402	PP,PV, HM	2	20-50 VDC	0.1 - 5.6	3	1	NEMA 17, 23, 24
EMA882-CAN	EM-CAN	CANopen	CiA 301/402	PP,PV,HM	2	20-80AC / 30-110VDC	0.1 - 8.2	4	2	NEMA23, 24, 34, 42
