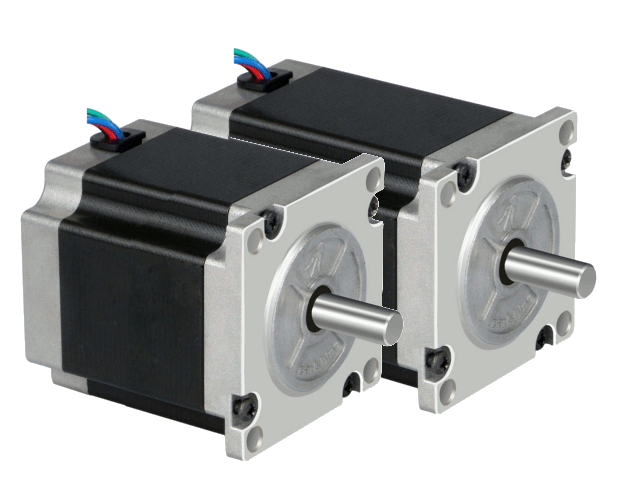

Hybrid Stepper Motors

Highlights

Industrial quality
Frame sizes of NEMA 17 to 42
High precision
High reliability
Low motor heating
Low vibration
Smooth movement

Introduction

By implementing latest design and advanced manufacturing technologies, Leadshine offers 2 & 3 phase hybrid stepper motors in frame sizes 11, 14, 16, 17, 23, 24, 34, and 42. Made of premium quality materials including bearings and shafts from Japanese suppliers, those Leadshine stepper motors can power your machines in high precision, low motor heating, low vibration with smooth motion.

Available Series

Series

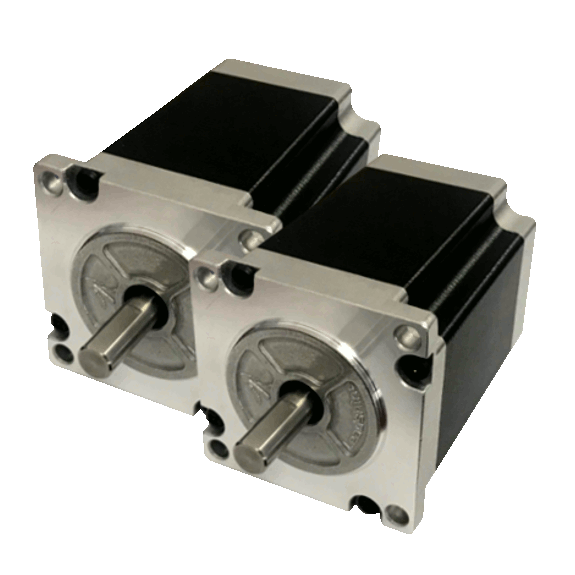

CM Series (NEW)

2 phase NEMA 17, 23, 24, and 34 stepper motors based on latest design and advanced manufacturing technologies. Excellent performance and high reliability

Detail...

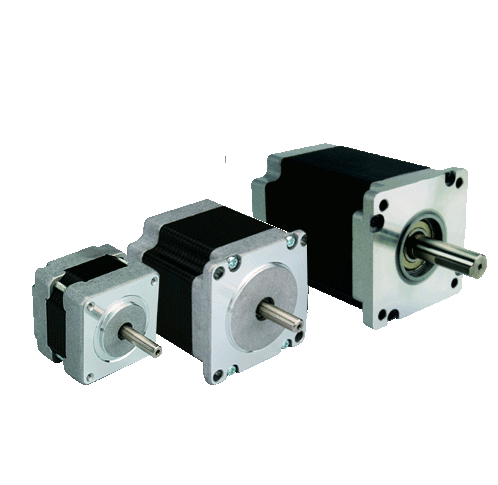

HS Series

2-phase and 3-phase hybrid stepper motors of NEMA 14, 16, 23, 34, 42, and 51. Industrial quality but most models of this series will be eventually phased out.

Detail...

Available Products

Filter By Frame size :

All Sizes NEMA 8 NEMA 11 NEMA 14 NEMA 16 NEMA 17 NEMA 23
NEMA 24 NEMA 34 NEMA 42

Model	Series	Phase	Frame Size (NEMA)	Holding Torque		Phase Current (A)	Length		Shaft Size
Model	Series	Phase	Frame Size (NEMA)	Nm	oz-in	Phase Current (A)	mm	inch	mm	inch
42CM04C	CM	2	17	0.4	57	1.5	40	1.57	5	0.197
42CM06C	CM	2	17	0.6	85	2.5	47	1.85	5	0.197
42CM08C	CM	2	17	0.8	113	2.5	60	2.36	5	0.197
57CM12C	CM	2	23	1.2	170	4	53	2.09	6.35	0.250
57CM12C-I8	CM	2	23	1.2	170	4	53	2.09	8	0.315
57CM12C-3A-CZ	CM	2	23	1.2	170	3	53	2.09	6.35	0.250
57CM22C	CM	2	23	2.2	312	5	74	2.91	8	0.315
57CM22C-SZ	CM	2	23	2.2	312	5	74	2.91	8	0.315
57CM22C-4A-I6-CZ	CM	2	23	2.2	312	4	74	2.91	6.35	0.250
86CM45C	CM	2	34	4.5	638	4	76	2.99	12.7	0.500
86CM85C	CM	2	34	8.5	1204	6	114	4.49	12.7	0.500
86CM120C	CM	2	34	12	1700	6	129	5.08	14	0.551
20CM003	CM	2	8	0.03	4	0.6	33	1.3	4	0.157
20CM005	CM	2	8	0.05	7	0.6	45	1.77	4	0.157
28CM006	CM	2	11	0.06	9	1.2	32	1.26	4.5	0.177
28CM010	CM	2	11	0.1	14	1.2	41	1.61	4.5	0.177
28CM013	CM	2	11	0.13	18	1.2	51	2.0	4.5	0.177
35CM015	CM	2	14	0.15	21	1.2	31	1.22	4.5	0.177
35CM04	CM	2	14	0.4	57	1.5	47	1.85	4.5	0.177
42CM02	CM	2	17	0.21	30	1.5	33	1.3	5	0.197
42CM02-1A	CM	2	17	0.21	30	1.0	33	1.3	5	0.197
42CM04	CM	2	17	0.4	57	1.5	40	1.57	5	0.197
42CM04-1A	CM	2	17	0.4	57	1.0	40	1.57	5	0.197
42CM06	CM	2	17	0.6	85	2.5	47	1.85	5	0.197
42CM06-1A	CM	2	17	0.6	85	1.5	47	1.85	5	0.197
42CM08	CM	2	17	0.8	114	2.5	60	2.36	5	0.197
42CM08-1A	CM	2	17	0.8	114	1.5	60	2.36	5	0.197
57CM06	CM	2	23	0.6	85	3.0	41	1.61	6.35	0.25
57CM13	CM	2	23	1.3	185	4.0	55	2.17	6.35	0.25
57CM13-3A	CM	2	23	1.3	185	3.0	55	2.17	6.35	0.25
57CM23	CM	2	23	2.3	326	5.0	76	2.99	8	0.315
57CM23-3A	CM	2	23	2.3	326	3.0	76	2.99	8	0.315
57CM23-4A	CM	2	23	2.3	326	4.0	76	2.99	8	0.315
57CM23-4A-0-I6	CM	2	23	2.3	326	4.0	76	2.99	6.35	0.25
57CM26	CM	2	23	2.6	368	5.0	84	3.31	8	0.315
57CM26-4A	CM	2	23	2.6	368	4.0	84	3.31	8	0.315
57CM26-4A-0-I6	CM	2	23	2.6	368	4.0	84	3.31	6.35	0.25
D57CM21	CM	2	23	2.1	297	5.0	67	2.64	8	0.315
D57CM21-4A	CM	2	23	2.1	297	4.0	67	2.64	8	0.315
D57CM31	CM	2	23	3.1	439	5.0	88	3.46	8	0.315
D57CM31-4A	CM	2	23	3.1	439	4.0	88	3.46	8	0.315
D57CM31-4A-0-I9	CM	2	23	3.1	439	4.0	88	3.46	9.525	0.375
60CM22X	CM	2	24	2.2	312	5.0	67	2.64	8	0.315
60CM30X	CM	2	24	3.0	425	5.0	85	3.35	8	0.315
86CM35	CM	2	34	3.5	496	4.0	65	2.56	12.7	0.5
86CM45	CM	2	34	4.5	638	6.0	80	3.15	12.7	0.5
86CM80	CM	2	34	8.0	1,133	6.0	98	3.86	12.7	0.5
86CM85	CM	2	34	8.5	1,204	6.0	118	4.65	12.7	0.5
86CM120	CM	2	34	12	1,700	6.0	129	5.08	14	0.551
39HS02	HS	2	16	0.22	31	0.6	34	1.34	5	0.197
110HS12	HS	2	42	12	1,699	6.0	115	4.53	19	0.748
110HS20	HS	2	42	20	2,832	6.0	150	5.91	19	0.748
110HS28	HS	2	42	28	3,965	6.5	201	7.91	19	0.748
573S09	HS	3	23	0.9	127	3.5	50	1.97	6.35	0.25
573S15	HS	3	23	1.3	184	5.8	76	2.99	8	0.315
863S22	HS	3	34	2.3	326	5	71	2.8	12	0.472
863S42	HS	3	34	4.3	609	5	103	4.06	12	0.472
863S68H	HS	3	34	6.8	963	2.3	135	5.31	14	0.551
