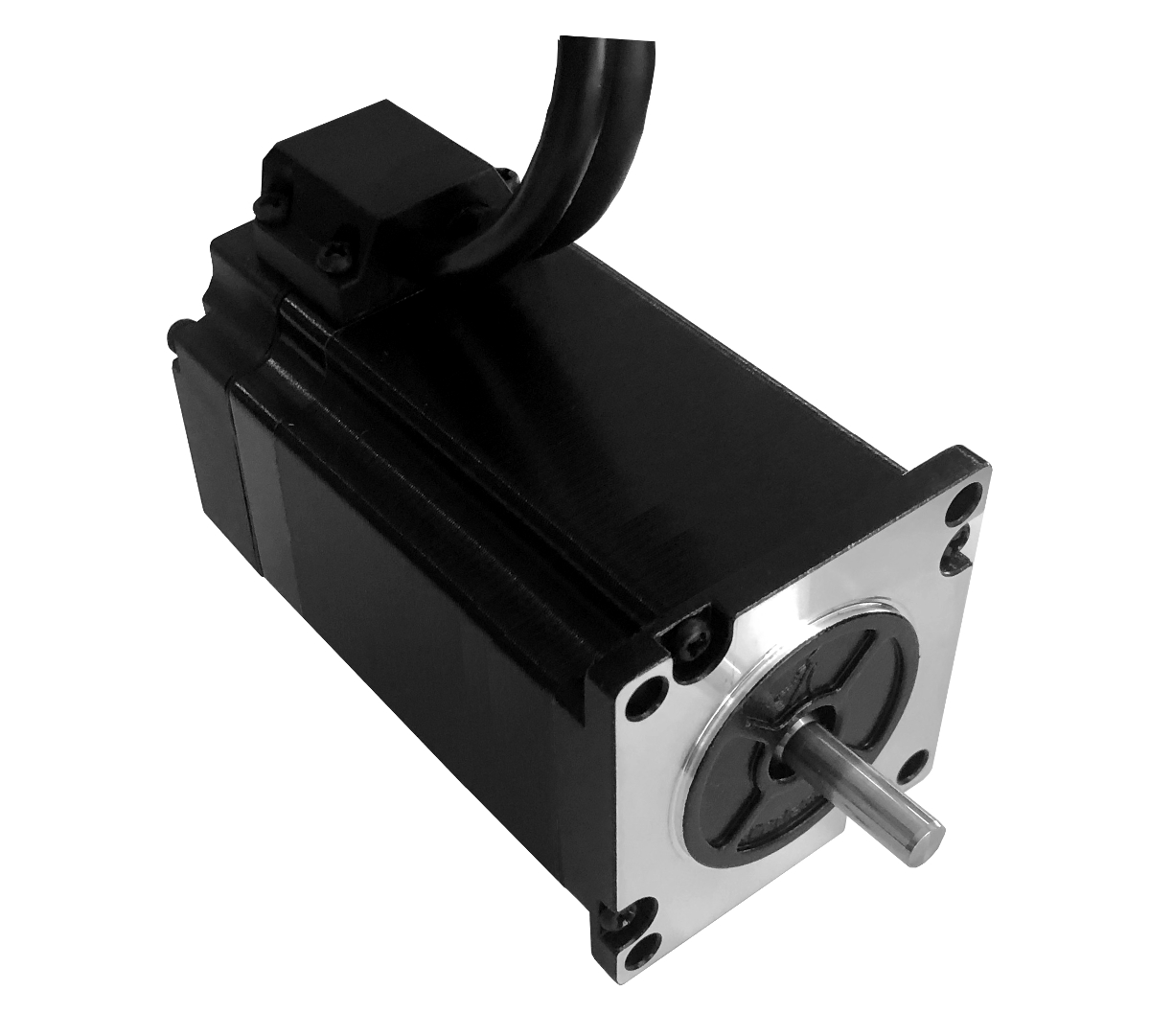

CS-M22326 - 2.6 N.m (369 Oz-In) NEMA 23 Stepper Motor with 1000-Line Encoder; 8mm (0.315-inch) Shaft

Features

  • 2 phase, NEMA 23 frame size
  • 104 mm (4.09 inch) long
  • 5 A phase current
  • 2.6 N.m (369 oz-in) holding torque
  • 8 mm (0.315 inch) shaft size
  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
  • High precision, low motor heating, and low vibration


Description Specifications Applications Downloads
The CS-M22326 is a 2 phase stepper motor with 2.6 N.m (369 oz-in) holding torque and integrated with a 1,000 line (4,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by Japanese manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.
CS-M22326 Companion products
