CS3E-D507 - EtherCAT Closed Loop Stepper Drive; Max 50 VDC / 7.0A; CE Certified; RoHS Compiant

Features

No loss of step, No hunting, No torque reservation
CANopen over EtherCAT (CoE) with full support of CiA402,100Mbps full-duplex
Support operation modes: Profile Position, Profile Velocity, Cyclic Synchronous Position, Homing
7 configurable digital inputs, 7 optically isolated digital outputs include brake output
Low noise and vibration, smooth motion
20-50VDC supply voltage, max 7A output current
USB port for parameters configuration
Encoder resolution: 1000 / 5000 line for NEMA 23/24 CS motors
Two 7-segment display velocity or slave ID or operation mode or error code
Protections for over voltage, over current and position following error, encoder cable error, etc
CE certified and RoHS compliant

Submit a Sales Request

* Note: only use this form to summit a sales related request. For technical support, click here to go to the support page, or contact your product distributor / reseller for assistance.

First Name: *	Last Name: *
Company:
Email: *
Phone:	Ext.: Website:
Country: *
Request Type: *
How Did you Find Us: *
Subject: *
Request Details: * (Max of 1,000 Characters)

Description

Specifications

Applications

Downloads

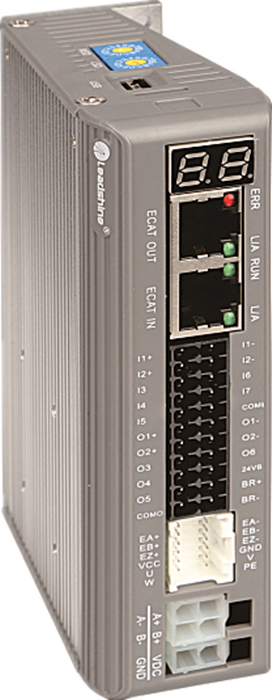

The newly released CS3E-D507 supports CANopen over EtherCAT (CoE) control and CiA 402 operating modes including Profile Position (PP), Profile Velocity (PV), Homing (HM) and Cyclic Synchronous Position (CSP). The product can be matched with many brands of EtherCAT controller/PLC such as Beckhoff, Omron, Trio, Keneyce etc.

The CS3E-D507 is able to power 2 phase and 4 phase NEMA 23 and 24 stepper motors with incremental encoders. It is highly reliable and affordable and performs excellently in many industrial applications

Model:	CS3E-D507
Phase:	2
Control Mode:	EtherCAT
Input Voltage Range:	20 - 50 VDC
Suggested Power Supply Voltage Range:	24 - 48 VDC
Software Cofig. Current Range:	0.5 - 7.0 A (default by 6.0 A, increased by 0.1 A)
Switch Functions:	0 - 255 node ID
Communication Type:	Micro-USB for tuning, EtherCAT for networking control
# of Digital Inputs:	7
Digital Inputs:	Touch probe, limit switch signal, origin signal and GPIOs
# of Digital Outputs:	7
Digital Outputs:	Fault outout, in position and GPIOs, and special brake output(24V / 500mA)
Operation Mode:	CSP, PP, PV, HM
Protection:	Over current; over voltage; chip error; motor cable error; ROM error; auto-tuning error; position following error;
Environment:	Avoid dust, oil fog and corrosive gases
Operating Temperature:	0 - 50 °C
Humidity:	40 - 95% RH
Vibration:	5.9 m/s2 Max
Storage Temperature:	-20 - 65°C

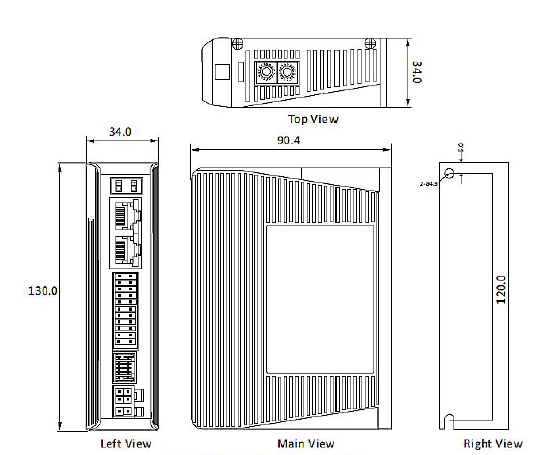

Mechanical:	130 * 90.4 * 34.0 mm
