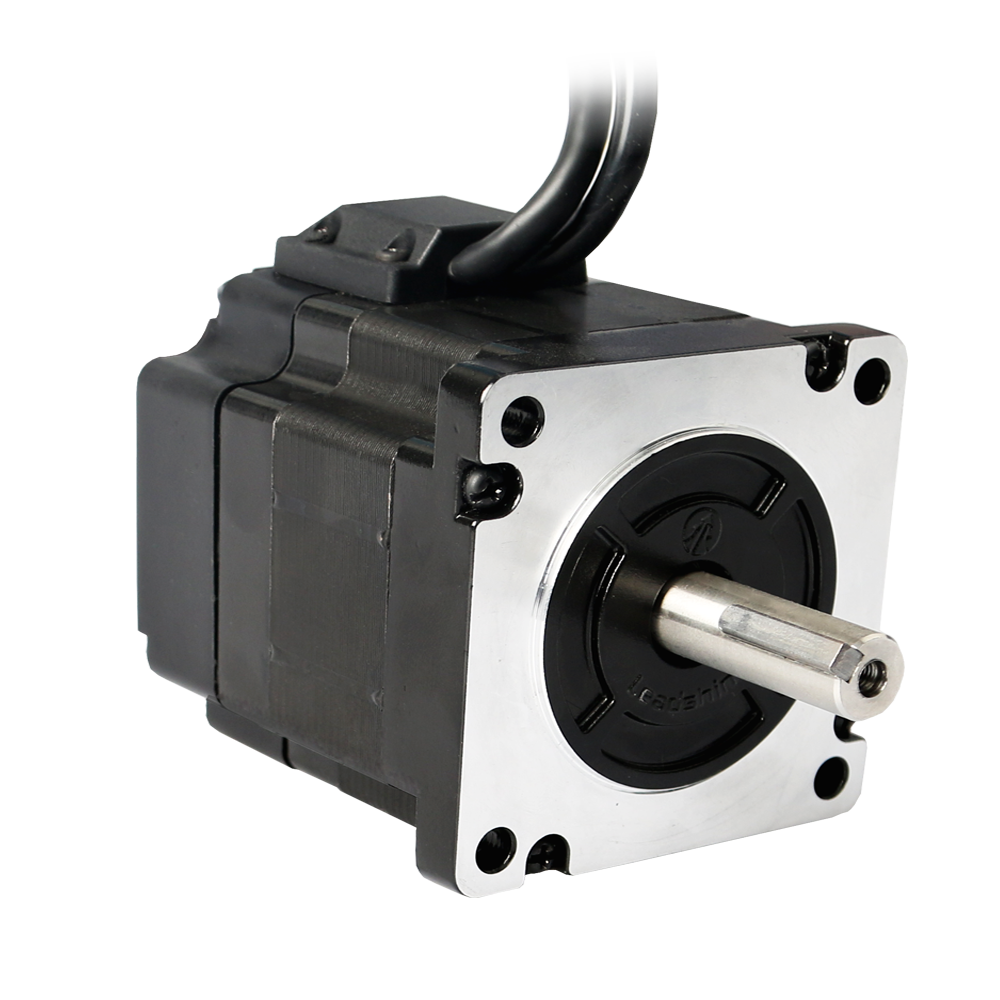

CS-M23445 - 4.5 N.m (638 Oz-In) NEMA 34 Closed Stepper Motor with 1000-Line Encoder

Features

  • 2 phase, NEMA 34 frame size
  • 109 mm (4.29 inch) long
  • 6 A phase current
  • 4.5 N.m (638 oz-in) holding torque
  • 14 mm (0.551 inch) shaft size
  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
  • High precision, low motor heating, and low vibration


Description Specifications Applications Downloads
The CS-M23445 is a 2 phase stepper motor with 4.5 N.m (638 oz-in) holding torque and integrated with a 1,000 line (4,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by Japanese manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.
