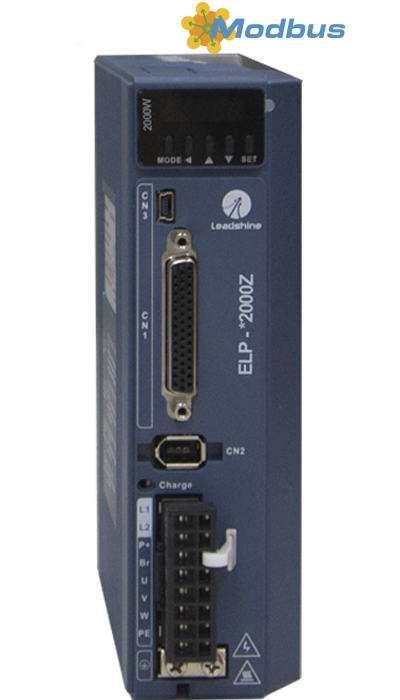

ELP-RS2000Z - ELP-RS2000Z

Features

Easy tuning, flexible to control
Automatic identification for motor type
Pulse & direction/Analog Input/Modbus
Notch filter, Damping filter
Dynamic brake
17-Bit/23-Bit absolute encoder
Internal resistor

Submit a Sales Request

* Note: only use this form to summit a sales related request. For technical support, click here to go to the support page, or contact your product distributor / reseller for assistance.

First Name: *	Last Name: *
Company:
Email: *
Phone:	Ext.: Website:
Country: *
Request Type: *
How Did you Find Us: *
Subject: *
Request Details: * (Max of 1,000 Characters)

Description

Specifications

Applications

Downloads

ELP series AC servo products are high performance AC digital servo which is designed for position/velocity/torque high accurate control,power range up to 2kW and it can provide intelligent performance with easy tuning process.

Combined with abundant features like MFC,vibration suppression,Multi-mode filter function,etc.It provides machines a compact size,low tuning works.With high resolution up to 23-Bit,which can be used for high accuracy applications.

Products Similar to ELP-RS2000Z

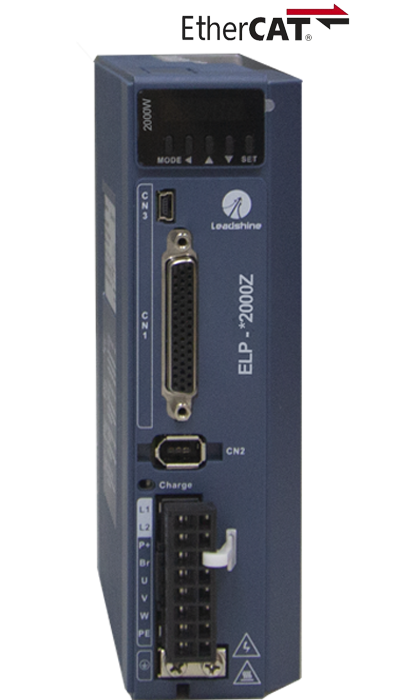

ELP-EC2000Z

Servo drive model:	ELP-RS2000Z
Rated output power:	2000W
Rated output current(A):	12
Max output current(A):	36

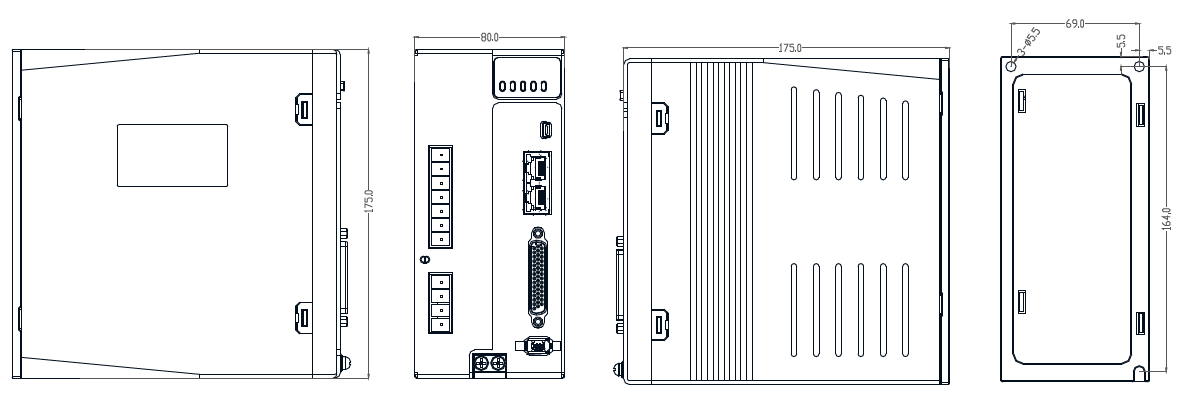

Dimensions(mm):	80175156
Main power:	1 or 3-phase 190Vac – 240Vac,50/60Hz
Control mode:	IGBT SVPWM sinusoidal wave control
Feedback mode:	17bit single-turn incremental encoder/23bit multi-turn absolute encoder
Input pulse:	0-500kHZ,5V differential input
Position band width:	200HZ
Electronic gear ratio:	1~8388608/1~8388608
Analog input:	-10~10Vdc,input resistance 20KΩ, no isolation
Velocity bandwidth:	500HZ
Input signal:	DI: 9 programable digital inputs, allows sink connection, Servo enable, over-travel inhibition, gain switching, command pulse inhibition, speed zero clamp, deviation counter clear, alarm clear
Output signal:	DO: 6 programable digital outputs, Alarm output, servo-ready, at-speed, zero-detection, velocity coincidence
Encoder signal output:	A phase, B phase, Z phase, long-distance drive mode output
Alarm function:	Over-voltage, under-voltage, over-current, over-load, encoder error, position deviation error, brake alarm, limit alarm, over-speed error etc.
Debug software:	All setting values of current loop, velocity loop , position loop can be modified and saved with Motion Studio software , all setting values can be downloaded and uploaded
Communication interface:	USB for configuration Modbus based on RS485
Brake mode:	Built-in brake resistor or external resistor
Adapt load inertia:	Less than 30 times motor inertia
weight:	About 1.5-3Kg
