Microstep resolutions and output current are programmable, the former can be set from full-step to 102,400 steps/rev and the latter can be set from 0.5A to 5.6A.

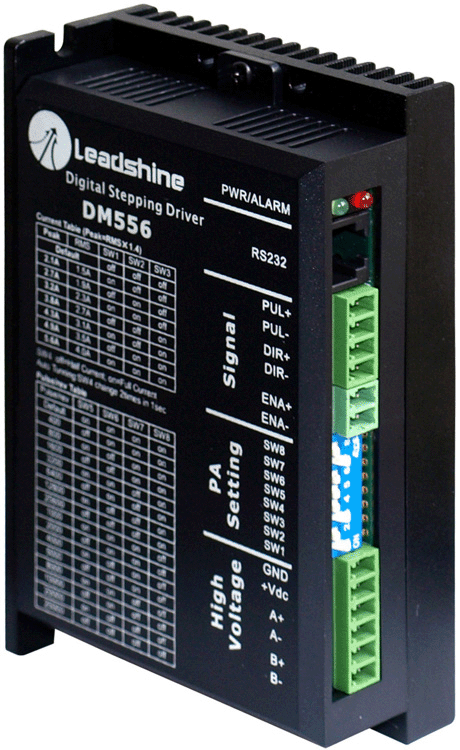

However, when it's not in software configured mode, this drive uses an 8-bit DIP switch to set microstep resolution, and motor operating current, as shown below:
Microstep Resolution Selection
When it's not in software configured mode, microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:
|
Microstep
|
Steps/rev.(for 1.8o motor)
|
SW5
|
SW6
|
SW7
|
SW8
|
|
1 to 512
|
Default/Software configured
|
on
|
on
|
on
|
on
|
|
2
|
400
|
off
|
on
|
on
|
on
|
|
4
|
800
|
on
|
off
|
on
|
on
|
|
8
|
1600
|
off
|
off
|
on
|
on
|
|
16
|
3200
|
on
|
on
|
off
|
on
|
|
32
|
6400
|
off
|
on
|
off
|
on
|
|
64
|
12800
|
on
|
off
|
off
|
on
|
|
128
|
25600
|
off
|
off
|
off
|
on
|
|
5
|
1000
|
on
|
on
|
on
|
off
|
|
10
|
2000
|
off
|
on
|
on
|
off
|
|
20
|
4000
|
on
|
off
|
on
|
off
|
|
25
|
5000
|
off
|
off
|
on
|
off
|
|
40
|
8000
|
on
|
on
|
off
|
off
|
|
50
|
10000
|
off
|
on
|
off
|
off
|
|
100
|
20000
|
on
|
off
|
off
|
off
|
|
125
|
25000
|
off
|
off
|
off
|
off
|
Current Settings
When it's not in software configured mode, the first three bits (SW1, 2, 3) of the DIP switch are used to set the dynamic current. Select a setting closest to your motor's required current.
|
Peak Current
|
RMS Current
|
SW1
|
SW2
|
SW3
|
|
Default/Software configured (0.5 to 5.6A)
|
OFF
|
OFF
|
OFF
|
|
2.1A
|
1.5A
|
ON
|
OFF
|
OFF
|
|
2.7A
|
1.9A
|
OFF
|
ON
|
OFF
|
|
3.2A
|
2.3A
|
ON
|
ON
|
OFF
|
|
3.8A
|
2.7A
|
OFF
|
OFF
|
ON
|
|
4.3A
|
3.1A
|
ON
|
OFF
|
ON
|
|
4.9A
|
3.5A
|
OFF
|
ON
|
ON
|
|
5.6A
|
4.0A
|
ON
|
ON
|
ON
|
Note: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.
