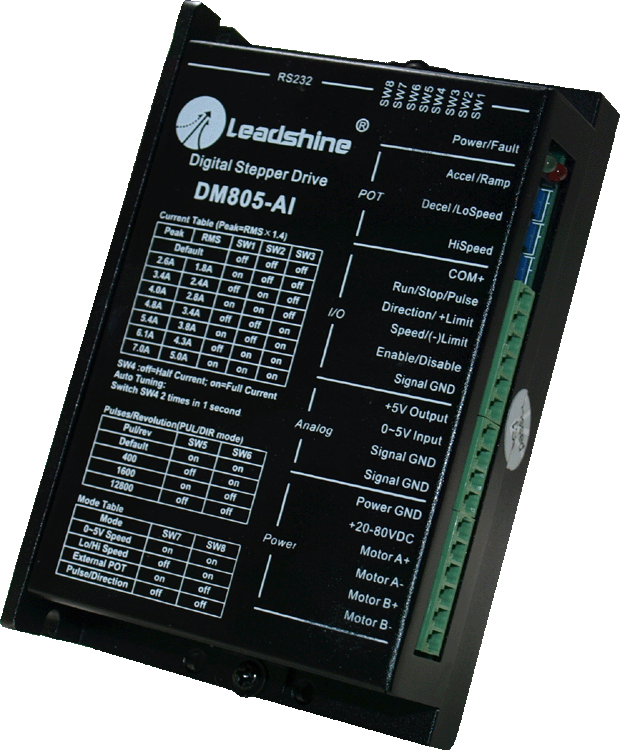

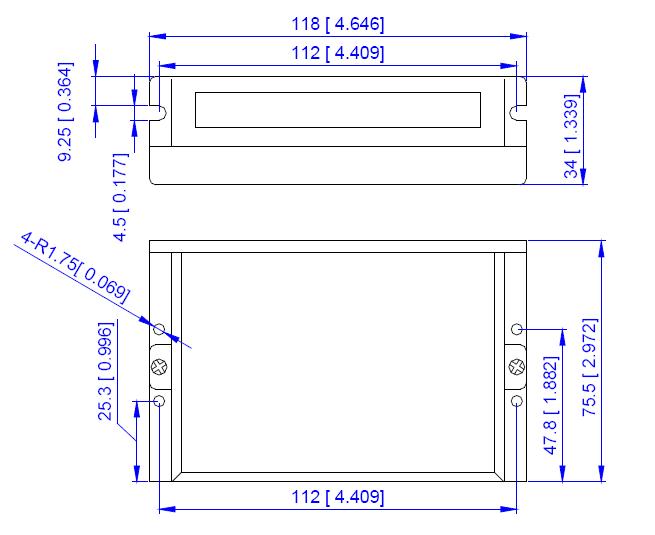

The DM805-AI featured in supporting 0-5V analog signal for speed controls. Like other DM series drives, it brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers on the markets. Its unique features make the DM805-AI an ideal solution for applications that require low-speed smoothness.
Not only implemented in traditional stepper systems for positioning controls, the DM805-AI has also been adopted in OEM applications for speed controls. In many applicaitons, Leadshine clients successfully implemented DM805-AI for speed controls, especially in low-speed applications to replace brushless DC motors plus planetary gearboxes.
The three built-in potentiometers are used to preset and adjust the velocity, acceleration and deceleration. In 0-5V speed mode, the motor speed is controllable and follows the analog 0-5V input. In high/low speed mode, the motor speed is selected by digital input and adjusted by the high/low speed potentiometers. The user can run the motor with the least configuration and connection. In position mode, the DM805-AI is a traditional stepper drive. There is a 5V power supply output for customer use. * Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.
Electrical Specifications
Parameter
Min
Typical
Max
Unit
Input Voltage
18
60
80
VDC
Pulse Input Frequency
0
-
200
kHz
Logic Signal Current
7
10
16
mA
Isolation Resistance
500
MΩ
Velocity Control
Item
Specification
Dead Band
Resolution
Analog Input
0-5V Speed Mode
0-5 V
10 mV
0 Rev/s
25 ± 0.5 Rev/s
External POT Mode
20 mV
Accel / Decel / Ramp Potentiometer
0-25 turns
0.5 Rev/s2
250 ± 1 Rev/s2
LoSpeed Potentiometer
5 ± 0.01 Rev/s
HiSpeed Potentiometer
Operating Environment
Cooling
Natural Cooling or Forced cooling
Environment
Avoid dust, oil fog and corrosive gases
Storage Temperature
-20 °C - 65 °C (-4°F - 149 °F )
Ambient Temperature
0°C- 50 °C (32 °F- 122°F)
Humidity
40%RH - 90%RH
Operating Temperature (Heat Sink)
70 °C (158 °F) Max
Vibration
10-55Hz, 0.15mm/s
-20 °C- 65 °C (-4 °F- 149 °F )
Digital I/O Signal Connector
6-pin screw terminal, 3.81 mm space
Pin
Name
I/O
Description
1
COM+
Power
+5V Power Input, common reference of all inputs
2
Run/Stop/Pulse
I
Run/Stop signal for 0-5V analog, Lo/Hi Speed and External POT mode. In Pulse/Direction mode, it accepts pulse input.
3
Direction / +Limit
Direction input for 0-5V analog, Lo/Hi Speed and Pulse/Direction mode. It is the +limit switch input in External POT mode. When +Limit is activated, the motor speed decelerates to zero in the acceleration set by Ramp potentiometer. The +Limit is only activated when the voltage applied to 0-5V input is 2.5-5V.
4
Speed / (-)Limit
Speed selection input in Lo/Hi speed mode. It is the -limit switch input in External POT and 0-5V Speed mode. When +Limit is activated, the motor speed decelerates to zero in the acceleration set by Ramp potentiometer. In External POT mode, the –Limit is activated only when the voltage applied to 0-5V input is 0-2.5V. In 0-5V speed mode, the –Limit is activated only when Direction input is connected to Signal GND.
5
Enable / Disable
This signal is used to enable or disable the power stage. Usually left it unconnected to enable the power stage.
6
Signal GND
GND
Signal ground. It is common with the power ground.
Analog Signal Connector
4-pin screw terminal, 3.81 mm space
+5V Output
O
+5V Power Output, reference to signal ground
0-5V Input
Analog 0-5V reference input
Power Connector
Power GND
Power ground
+20-80VDC
Power supply input, 24-72VDC recommended, leaving rooms for voltage fluctuation and back-EMF.
Motor A+
Motor Phase A+
Motor A-
Motor Phase A-
Motor B+
Motor Phase B+
Motor B-
Motor Phase B-
Operating Modes
Mode
SW7
SW8
0~5V Speed
on
Analog 0-5V Speed Mode
Lo/Hi Speed
off
Low and High Speed Mode
External POT
External Potentiometer Speed Mode
Pulse/Direction
Pulse and Direction Position Mode
Note: Can not change mode on-the-fly and need to repower the drive.
Current Settings
PEAK
RMS
SW1
SW2
SW3
Default
2.6A
1.8A
3.4A
2.8A
4.0A
2.4A
4.8A
5.4A
3.8A
6.1A
4.3A
7.0A
5.0A
Note: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.
Pulses/Rev.
SW5
SW6
400
1600
12800

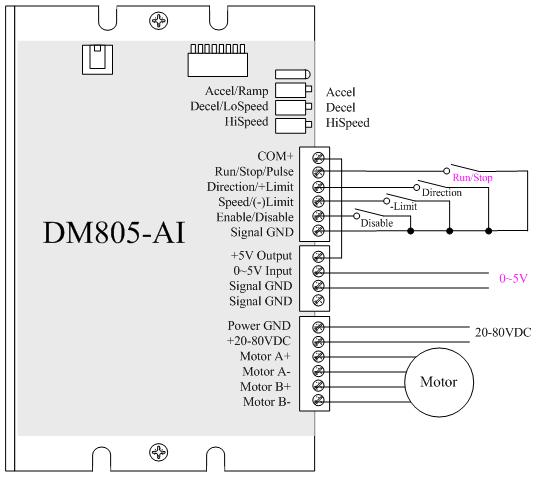

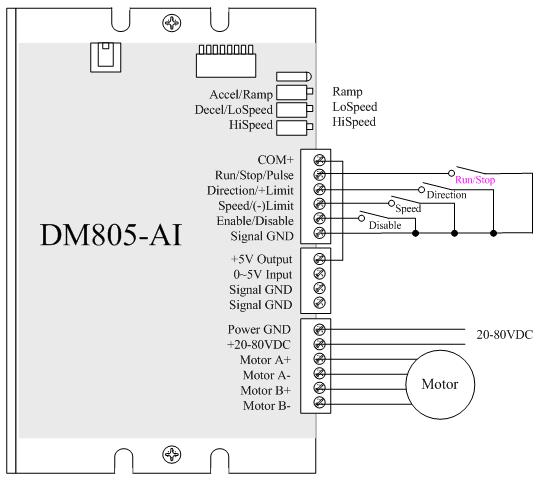

0-5V Speed Mode Low/High Speed Mode

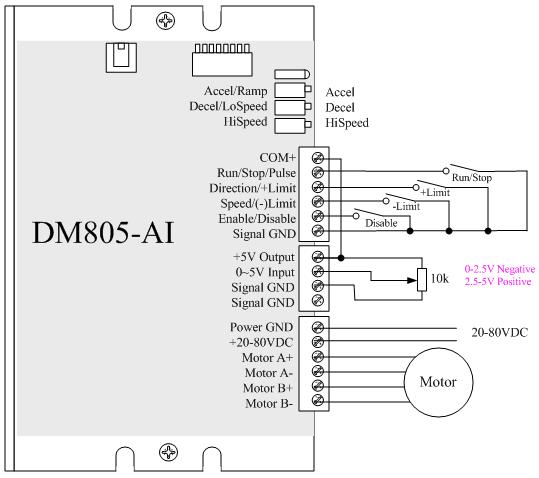

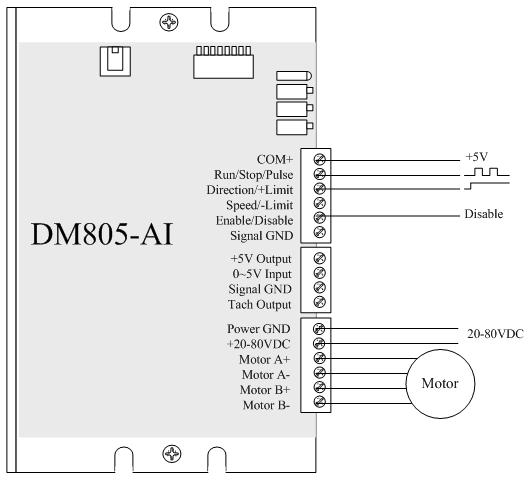

External POT Mode Pulse/Direction Mode
