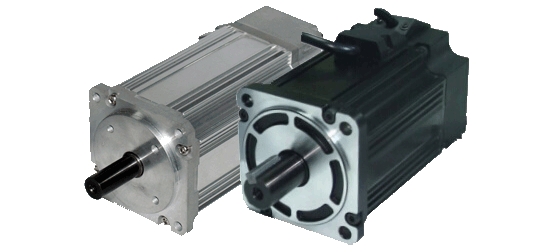

ACM Series - 60mm Brushless Servo Motors


Highlights

  • Brushless construction
  • Reliable industrial quality
  • High torque density
  • Resolution of the integrated encoders optional
  • Metric 60 mm frame sizes
  • Rated power from 100 W to 400 W
  • Standard cabling options for direct connection to the ACS series drives

The ACM series low-medium voltage AC servo motors offer high performance with models ranging from 100W to 400W. Standard  models come  with  a  standard  2500-line  or  1000-line  differential  encoder with index slits  (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors meet application requirements from as low as 1 rpm to as high as 3500 rpm.

Available Products in ACM Series

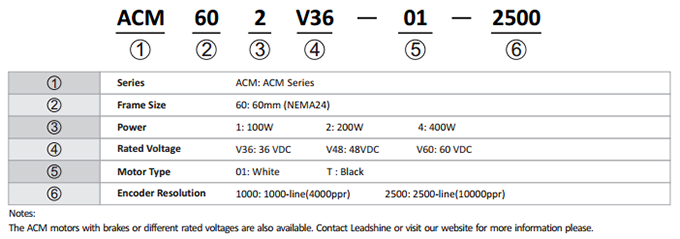

Model Series Encoder
Resolution
Frame
Size
Rated
Power
(W)
Rated
Voltage
(VDC)
Torque
(N*m)
Speed
(RPM)
Motor
Length
(mm)
Notes
Continuous Peak Rated Peak
ACM601V36-01ACM1,000-line60mm100360.3180.953,0004,00096-
ACM602V36-01ACM1,000-line60mm200360.641.913,0004,000123.5-
ACM604V60-01ACM1,000-line60mm400601.273.823,0004,000131.5-
ACM601V36-TACM2,500-line60mm100360.3180.953,0005,00089.5-
ACM602V36-TACM2,500-line60mm200360.641.913,0005,000103.5-
ACM604V48-TACM2,500-line60mm400481.273.823,0005,000131.5-
ACM604V60-TACM2,500-line60mm400601.273.823,0005,000131.5-
